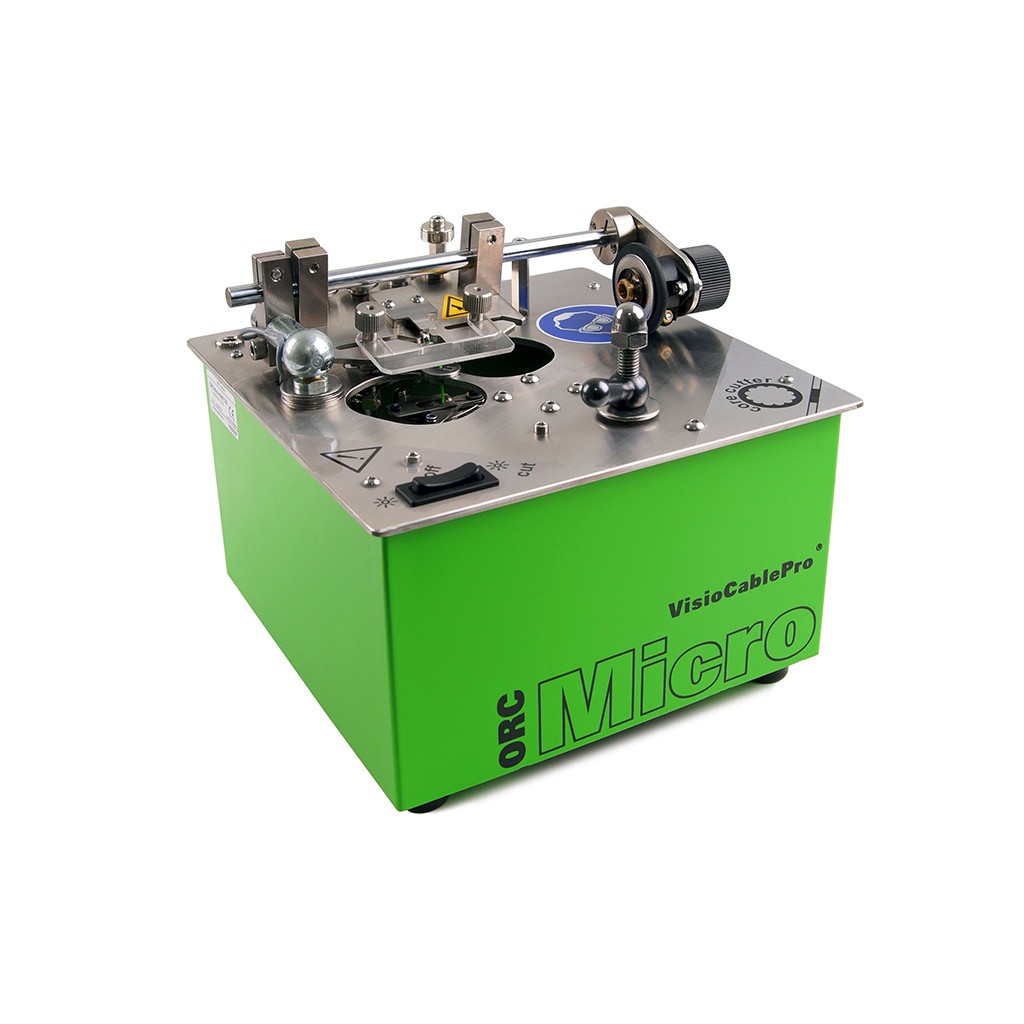

Cable O-Ring Cutter ORC Micro
# ORC-Micro
Technical details:
| Size (WxLxH) | 200 x 200 x 170 mm 7.87 x 7.87 x 6.69 Inch |
||
| Weight | 3.25 kg / 7.16 lbs | ||
| Supply Voltage | 100 - 240 V / 50 - 60 Hz | ||
| Input Power | max. 60 Watt | ||
| Blade | Stainless steel blade Product No.: 404.0004.04 |
||
| Lighting | LED | ||
| Ø - Cable sample | 0.5 - 3.5 mm / 0.019 - 0.14 Inch | ||
The sample cutting device for very small samples
Save up to ? measuring uncertainty with well prepared samples
Device details:
- Sample preparation according to IEC 60811

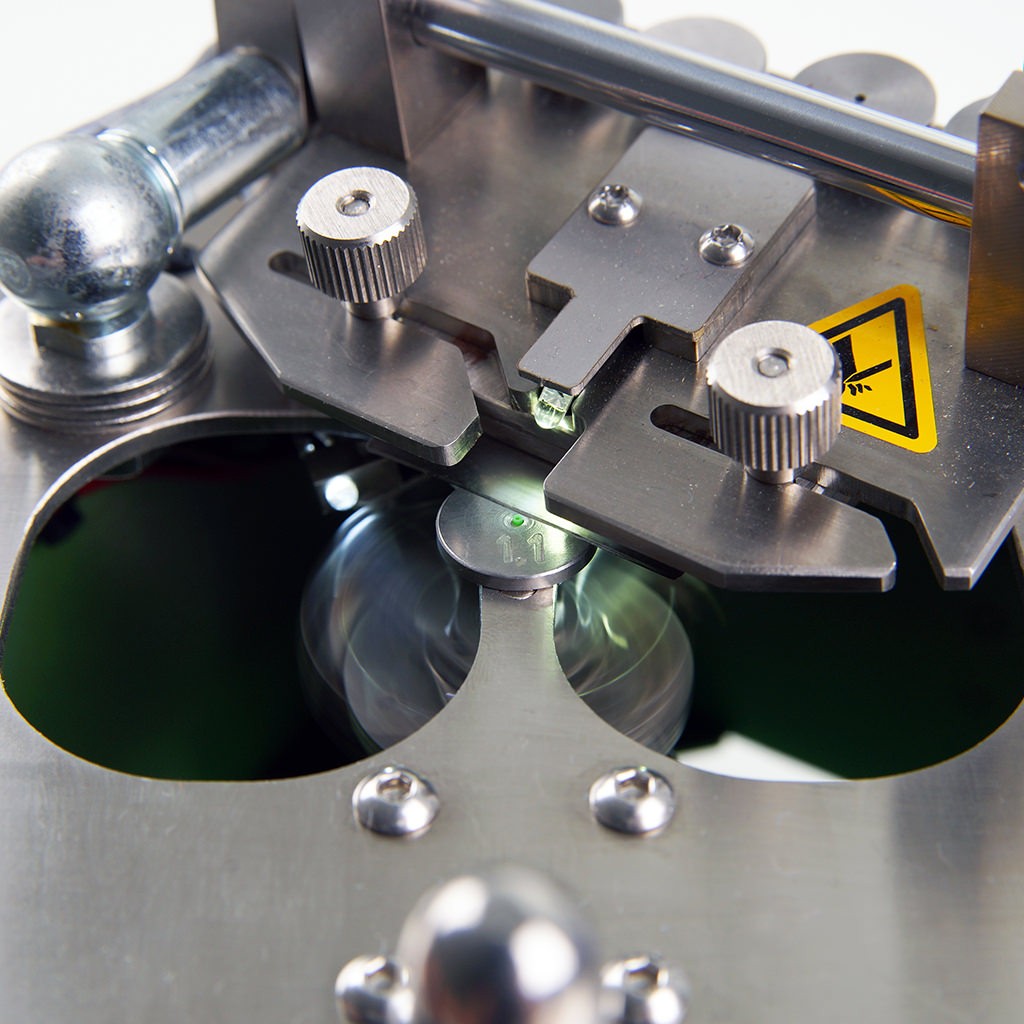

- Sample cutting device for cutting very small samples up to 3.5 mm (0.14“) outer diameter depending on material and wall thickness
- Easy and fast operation
- Robust, compact device out of stainless steel - no corrosion

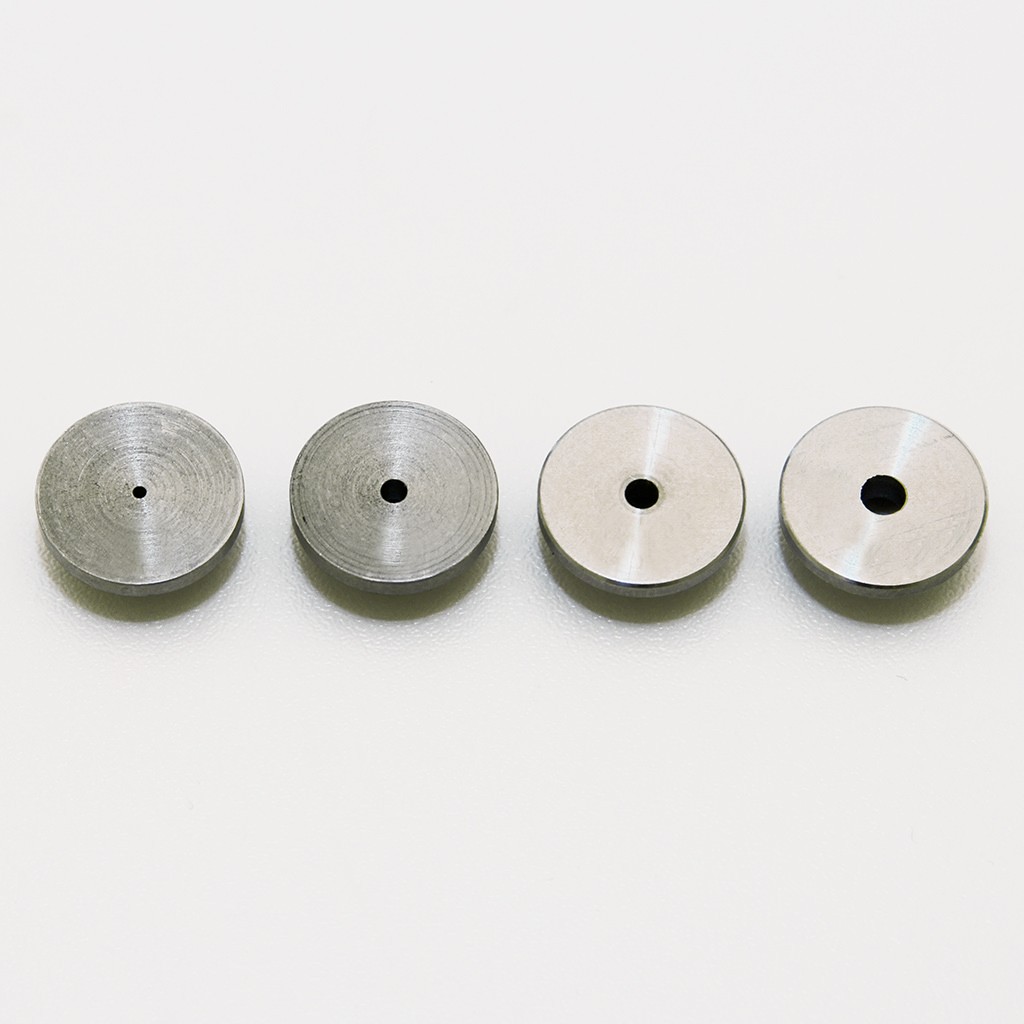

- 4 different adapters to stabilise the samples
- (on request more adapters of different sizes available - Product No.: 402.0007.13)
