• Provides very high-speed, non-contact optical detection of insulation lump and neck flaws for cables up to 25mm in diameter.
• Available in a 2-axis model for budget applications and a 3-axis model for maximum flaw coverage.
• Housed in rugged enclosures to survive harsh industrial environments.
• Fitted with an integrated airwipe system that maintains optical window cleanliness.
• Completely solid-state design with no moving parts for long life and high reliablity.
• Available with industry-standard communications interfaces fitted either as standard or as an option.

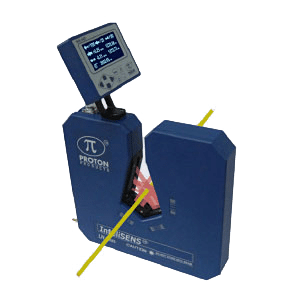

Proton Products InteliSENS® LN series 2-axis and 3-axis lump and neck detectors provide outstanding product quality supervision.

The InteliSENS® LN Series uses LED light sources, high-speed digital signal processing (DSP) and specialized optical design technology to inspect, alarm and report Surface Quality Defects (SQD) as they happen, reducing customer complaints and improving your reputation as a quality product supplier.

The LED Constant Light Sources illuminate the circumference of the product and any change in the surface profi­le is immediately detected by a photodiode optical receiver which reports the height, length and location of lump and neck flaws along and around the product.

Extremely easy to install, integrate and operate, InteliSENS® LN series lump and neck detectors may be used as a standalone device or integrated with production line PLCs.

Optional audio/visual alarm units, fault ticket printers and data logging PC software are available to compliment any InteliSENS® LN series model to close the loop on Quality Control.

Applications include production processes such as wire drawing, braiding, cable insulation and jacketing, rewinding and coiling, rubber and plastic extrusion processes for hose, tube and pipe production.
