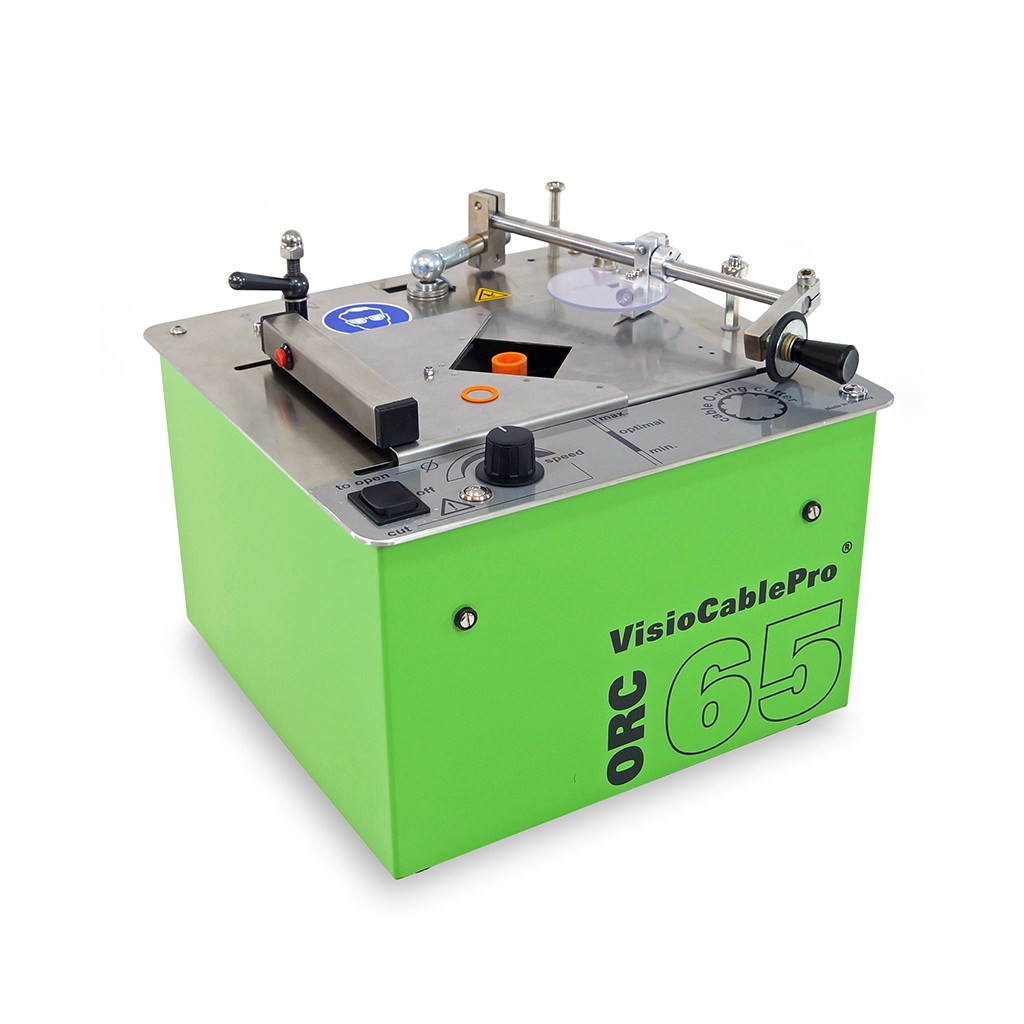

Cable O-Ring Cutter ORC 65
Technical details:
| Size (WxLxH) | 400 x 400 x 280 mm 15.75 x 15.75 x 11.02 Inch |
||
| Weight | 8.5 kg / 18.7 lbs | ||
| Supply Voltage | 100 - 240 V / 50 - 60 Hz | ||
| Input Power | max. 40 Watt | ||
| Blade | Martor Grafix 680 Blade Product No.: 404.0004.05 |
||
| Lighting | LED | ||
| Ø - Cable sample | 1 - 65 mm 0.04 - 2.56 Inch |
The Cutting Tool for the fast Sample Preparing
Save up to ? measuring uncertainty with well prepared samples
Easy to use...
With the Cable O-Ring Cutter 65 it is really easy and quick to cut sample slices (cable sheath cutter) with an outer diameter from 1 to 65 mm (<2.56"). The samples are optimally prepared for measurements in off-line cable measuring devices.
Your Benefits
The Cable Cutter 65 prepares your cable samples optimally for qualitative measurements in offline cable measuring instruments. With its compact dimensions and low weight it is optimally suitable for the application in the lab and in the production.
Device details:
- Sample preparation according to IEC 60811
- Very robust device
- Thin, evenly and parallel cut samples with a smooth surface
- Quick and efficient cut
- LED to illuminate the cutting process
- Precise and repeatable measuring results
