InteliSENS® SL mini Series
# SL mini Series
InteliSENS® SL mini Series
SPEED & LENGTH MEASUREMENT

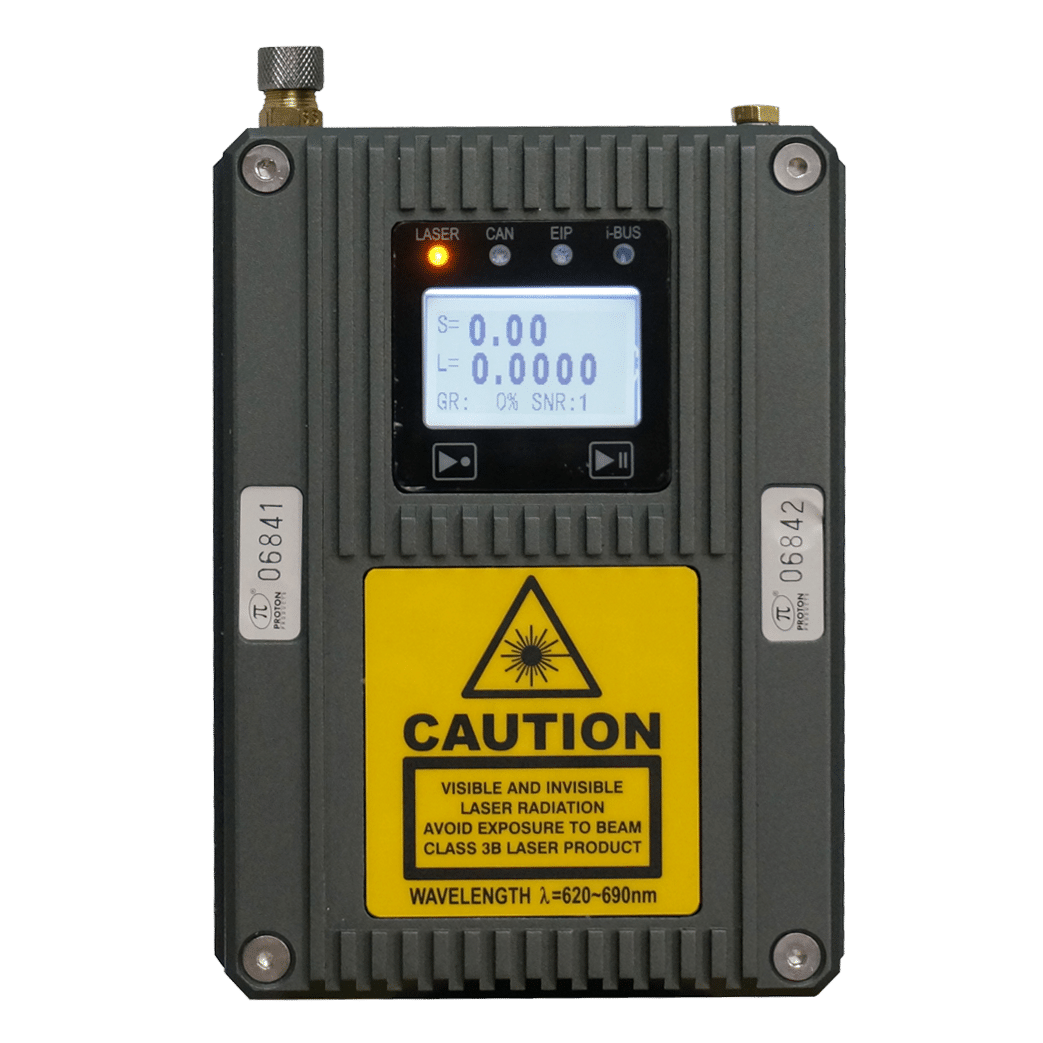

The InteliSENS® SLmini non-contact speed and length measurement gauge is ideal for flat surface products in “roll to roll” or “cut to length” processes. Paper, Film, Foil, Wovens, Non-Wovens, Textiles, Roofing, Sidings, Gypsum Board are just a few examples. Applications where speed measurement is critical for drive control or where length measurement is critical for product quality will benefit from the increased accuracy of Laser Doppler Speed and Length Measurement.
- No Slip, No Wear, No Marking of your product
- No Moving Parts, Increased Reliability and MTBF
- Incredibly small and easy to install
- Pulse outputs like your encoder
- Digital Communications you need
- Stand Alone Measuring Device or Fully Integrated to PLC
| SLmini 1220 | SLmini 3060 | |
| Stand Off Distance | 120mm 4.74” |
300mm 11.81” |
| Depth of Field | 20mm 0.79” |
60mm 2.36” |
| Minimum Speed | 0.1 m/min 0.33 ft/min |
0.25 m/min 0.82 /ft/min |
| Maximum Speed | 2000 m/min 6562 ft/min |
5000 m/min 16404 ft/min |
Accuracy
Factory Calibrated to better than 0.05% within the central 20% of the Depth of Field.
Repeatability of 0.02%
Measurement
Maximum Acceleration Rate of 1000m/s2 (3280ft/s2)
Measurement Rate Up to 50,000/sec (20us)
Units
Speed Measurement selectable m/min, ft/min, yd/min
Length Measurement selectable m, ft, inch, yd
Material Present
For part length measurement
Connectivity
4 Pulse Outputs
RS422 Differential Pair Pulse Outputs Configurable as Quadrature or Index
Default Output 5vdc or User Input to 24vdc Max
2MHz Max Pulse Output Rate
3 Logic Inputs
Non Isolated, Normally Open (High State) Pulldown Logic Inputs
Maximum Voltage: +/-30V Minimum Current 3mA
Reverse Direction, Length Hold, Display Hold, Speed Hold, Total Length
Reset, End of Reel / Batch Length Reset
2 Logic Outputs
Maximum Voltage 25Vdc Current 0.1A
Gauge Ok, Object Detected, Gauge Measuring, Good Readings Low,
Gauge Temperature High, Preset Length 1, Preset Length 2
1 Serial I/O
RS232 Modbus Communications
USB using RS232 - USB Converter Cable
ZM4000 Printer Communications
1 CANBUS
Connects to Proton Products CDi4 Display
1 WiFi

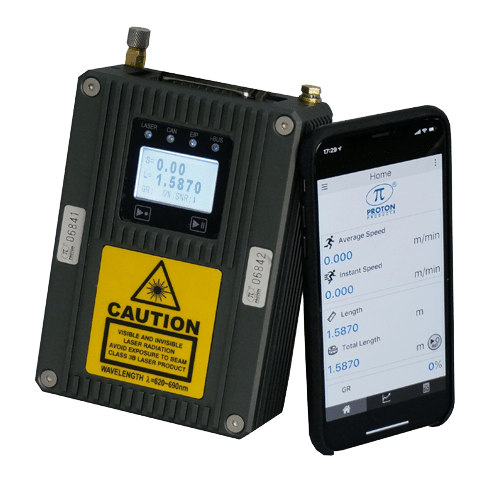

Connect to a PC or Mobile Device and use the Proton Products Gauge
App available for iOS and Android. Ideal for gauge configuration and
diagnostics.
1 i-BUS
Ethernet TCP/IP Modbus is the Default Communication. Connect to a PLC using optional ProfiBus, ProfiNet, EtherNet I/P or DeviceNet.
Laser Doppler
Class 3B Visible Laser.
Wavelength 650 - 670 nm, typically 658 nm with a beam diameter of 3mm (0.12”)
Total emitted power 40mW. Power Density at Stand Off Distance 50mW/cm2
Electrical and Operating Requirements
Power Supply
15 - 28 Vdc
Power Consumption
15 Watts
Operating Temerature
5c - 40c (41-104F)*
Environmental Protection
IP 67
Size and Weight
Height
142mm (5.6”)
Width
104mm (4.1”)
Thickness
53mm (2.1”)
Weight
3kg (6.6lbs)
Accessories
SL/SLR mini Accessories
Displays
AiG2-SL/SLR
Display module
CAN-bus cable
For connecting the gauge via a PSU-BOB mini to an CDi interface display unit
| Name | Length / m | Proton part number |
|---|---|---|
| CAN 9DD_001 | 1 | 00041CB001 |
| CAN 9DD_005 | 5 | 00041CB005 |
| CAN 9DD_010 | 10 | 00041CB010 |
| CAN 9DD_020 | 20 | 00041CB020 |
| CAN 9DD_040 | 40 | 00041CB040 |
| CAN 9DD_060 | 60 | 00041CB060 |
| CAN 9DD_100 | 100 | 00041CB100 |
USB-RS232 Cable
AiG2 Panel Mount Kit
PCIS_SL/SLR mini
PC Interface Software
7″ Touch Screen PC
Industrial PC
Power
DB25 Cable
For connecting the gauge "INTERFACE" port to a PSU-BOB mini.
| Name | Length / m | Proton part number |
|---|---|---|
| BOB 25DD_001M | 1 | 00041CT001 |
| BOB 25DD_003M | 3 | 00041CT003 |
| BOB 25DD_005M | 5 | 00041CT005 |
| BOB 25DD_010M | 10 | 00041CT010 |
| BOB 25DD_020M | 20 | 00041CT020 |
| BOB 25DD_030M | 30 | 00041CT030 |
Terminal Expander
Gauge-mounted break-out box
PSU-BOB mini
Power supply, break-out box and laser safety key switch
Communications
Industrial Bus Module
For connecting the gauge to industrial communications buses, such as used with PLCs.
| Protocol | Proton part number |
|---|---|
| DeviceNET | 00043MC006 |
| PROFIBUS | 00043MC022 |
| PROFINET | 00043MC031 |
| EtherNet/IP | 00043MC005 |
Stands and Guards
Base Plate
3D Adjuster Plate
Laser Protection Tube for SL/SLR mini 3060
Vibration Reducing Kit
Laser Protection Tube for SL/SLR mini 1220
Protection
Air Wipe
Cooling
Cooling plate
Calibration accessories
SL Calibration Case
Portable on-site calibration system
