Accessories

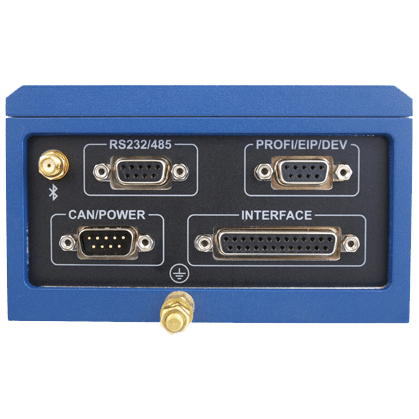

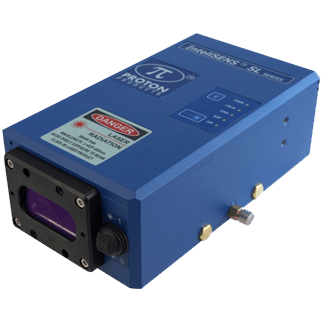

SL/SLR Accessories

Interface display modules

AiG1

Display module




  • Proton part number: 00001MC970



    • Connects via the RS-232 port.
    • Displays measured speed, length and preset length.
    • Provides setting of preset length and speed limits.





CAN-bus cable

For connecting the gauge to an AiG2 interface display unit




  • * Available in 5, 10, 15, 20, 30 and 50m lengths.



Name Length / m Proton part number
CAN 9DD-005 5 00041CB005
CAN 9DD-010 10 00041CB010
CAN 9DD-015 15 00041CB015
CAN 9DD-020 20 00041CB020
CAN 9DD-030 30 00041CB030
CAN 9DD-050 50 00041CB050



AiG2-SL

Display module




  • Proton part number: 00041MC045



    • Connects via the CAN-bus port.
    • Displays measured speed and length.
    • Provides menu-based setting of all parameters.
    • Bright vacuum fluorescent dot matrix display.
    • Mounts directly on the gauge body or remotely via an extension cable.





CS1G-SL

Display, PSU, break-out box and laser safety key switch




  • Proton part number: 00018MC140



    • Connects via the “INTERFACE” connector and RS-232 port.
    • Displays measured speed, length and preset length.
    • Supplies electrical power to the gauge.
    • Provides screw terminal access to all “INTERFACE” connector input and output pins.
    • Provides a laser enable key switch for compliance with laser safety requirements.






Power supplies and connectivity

PSU-DT

Mains power adapter




  • Proton part number: 0001MC264



    • Connects via the DB25 “INTERFACE” connector.
    • Supplies electrical power to the gauge.
    • Input voltage range: 90 – 260 VAC @ 45 – 65 Hz.





Terminal Strip-DIN

Power supply, break-out box and laser safety key switch




  • Proton part number: 00041MC730



    • Breaks out the DB25 “INTERFACE” connector to a DIN rail mountable set of screw terminals.





RJ45 to DB9 converter

Power supply, break-out box and laser safety key switch




  • Proton part number: 00003CM229



    • For connecting RJ45 8P8C terminated cables to the DB9 EtherNet / IP port.





PSU-BOB-SL

Power supply, break-out box and laser safety key switch




  • Proton part number: 00041MC360



    • Connects via the DB25 “INTERFACE” connector.
    • Supplies 24VDC electrical power to the gauge.
    • Provides screw terminal access to all “INTERFACE” connector input and output pins.
    • End user cables are sealed with three cable glands.
    • Provides a laser enable key switch for compliance with laser safety requirements.
    • Input voltage range: 90 – 260 VAC @ 45 – 65 Hz.





DB25 Cable

For connecting the gauge “INTERFACE” port to a PSU-BOB-SL, Terminal Strip-DIN or CS1G-SL




  • Proton part number: 00041MC360



  • * Available in 3, 5, 10, 20 and 30 m lengths.



Name Length / m Proton Part Number
BOB-003 3 00043MC021
BOB-005 5 00041CT005
BOB-010 10 00041CT010
BOB-020 20 00041CT020
BOB-030 30 00041CT030




Direction sensing

FR Roller

Direction Wheel




  • Proton part number: 00033MC060



    • For connection to Proton SL gauges for direction sensing (not applicable to SLR gauges).
    • The roller is placed in contact with the object surface to detection direction of motion.







Software

PCIS_SL

PC Interface Software




  • Proton part number: 00020SW100



    • PC-based software package.
    • User-friendly graphical user interface.
    • Displays all measurements.
    • Provides menu-based setting of all parameters.
    • Provides trending, data logging, presets and alarms.
    • Gauge to PC connection via RS-232 or optional RS-232-to-USB interface cable (RSCon).







Mountings and laser safety

Tripod

Portable tripod and boom mount




  • Proton part number: 00043MC003



    • Suitable for gauges that need to be moved from location to location e.g. as a calibration reference for mechanical encoders.
    • Based on a light weight, portable industrial tripod and extendable aluminium boom (00020TL003).
    • Two swivel joints (00043MC004) permit easy angular alignment of the boom and the gauge.
    • A connection plate (00020TL605) is included for attachment to gauges not fitted with a UNC 3/8” thread.





PHA-1 3D ADJ

3-axis Precision height adjuster




  • Proton part number: 00030MC140



    • For precision height adjustment of the laser beam measurement zone to the object under measurement using a hand wheel and lead screw.
    • Height adjustment range accommodates object diameters from 0.3 mm (0.012”) to 200 mm (7.88”).
    • Has two additional adjustment axes for aligning the roll and yaw for maximum measurement accuracy.





SL Laser Guard PHA-1

Laser safety enclosure for PHA-1 (with side skirts)




  • Proton part number: 00020MC230 (with side skirts)



    • Mounts to a PHA-1 to prevent accidental viewing of direct and reflected laser beams.
    • Integrated interlock switch engages the gauge laser shutter whenever the guard cover is opened.
    • Side skirts contain reflected laser radiation from highly-reflective objects.





PHA-1

Precision height adjuster




  • Proton part number: 00030MC200



    • For precision height adjustment of the laser beam to the object under measurement using a hand wheel and lead screw.
    • Adjustment range accommodates object diameters from 0.05 mm (0.002”) to 200 mm (7.88”).





SL Laser Guard PHA-1

Laser safety enclosure for PHA-1




  • Proton part number: 00020MC250



    • Mounts to a PHA-1 to prevent accidental viewing of direct and reflected laser beams.
    • Integrated interlock switch engages the gauge laser shutter whenever the guard cover is opened.





PHA-2

Precision cable / wire aligner




  • Proton part number: 00020MC900



    • For precision alignment of the laser beam measurement zone to cables or wires.
    • Provides two adjustable cable / wire guides.
    • Adjustment range accommodates object diameters from 0.3 mm (0.012”) to 10 mm (0.393”).





SL Laser Guard PHA-2

Laser safety enclosure for PHA-1




  • Proton part number: 00020MC260



    • Mounts to a PHA-2 to prevent accidental viewing of direct and reflected laser beams.
    • Integrated interlock switch engages the gauge laser shutter whenever the guard cover is opened.






Harsh and extreme environment accessories

Air wipe SLMKII




  • Proton part number: 00041MC240



    • Provides a constant flow of clean air over the laser window to disperse dust, debris or steam.
    • Easily detached by a quick release screw for cleaning.
    • Provides an 8 mm push fit tube fitting to connect to a clean air source.





Air / water inlet elbow connector




  • Proton part number: 00002CM696



    • For attaching cooling air or water connection.
    • 90° bend, freely rotatable.
    • 8mm push fit pipe connector.






Calibration accessories

SL Calibration Case

Portable on-site calibration system




  • Proton part number: 00020TL750



    • Motorised aluminium calibration wheel mounted in a rugged aluminium frame carry case.
    • Displays speed and length.
