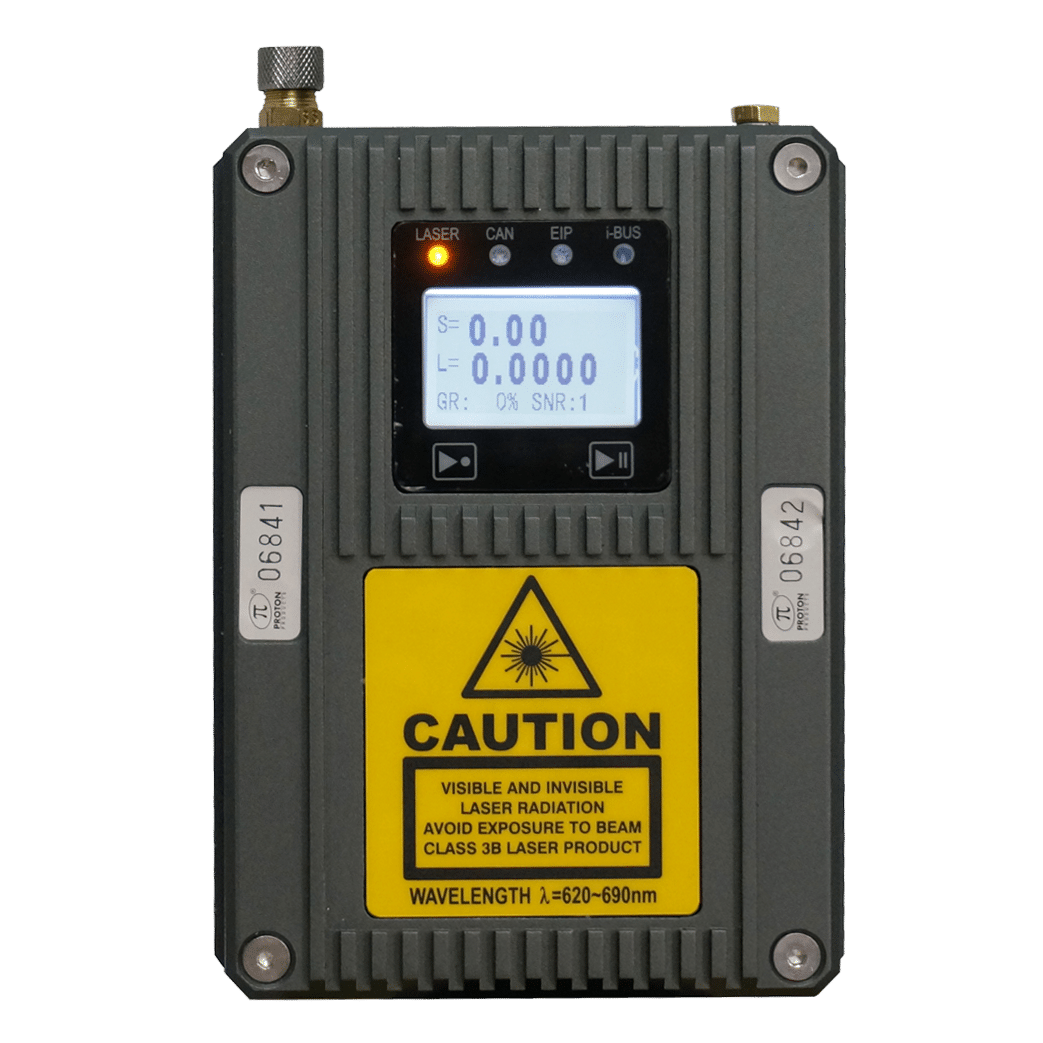

InteliSENS® SLR mini Series

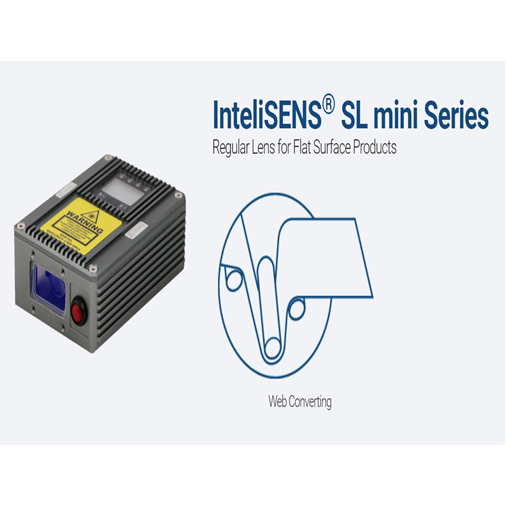

# SLR mini Series

InteliSENS® SLR mini Series

SPEED & LENGTH MEASUREMENT

The InteliSENS® SLRmini non-contact speed and length measurement gauge is ideal for flat surface products in “roll to roll” or “cut to length” processes. Paper, Film, Foil, Wovens, Non-Wovens, Textiles, Roofing, Sidings, Gypsum Board are just a few examples. Applications where speed measurement is critical for drive control or where length measurement is critical for product quality will benefit from the increased accuracy of Laser Doppler Speed and Length Measurement.

  • No Slip, No Wear, No Marking of your product
  • No Moving Parts, Increased Reliability and MTBF
  • Incredibly small and easy to install
  • Pulse outputs like your encoder
  • Digital Communications you need
  • Stand Alone Measuring Device or Fully Integrated to PLC
  • Zero Speed and Automatic Direction Detection
Series Brochure

SLmini Performance

  SLmini 1220 SLmini 3060
Stand Off Distance 120mm
4.74”		 300mm
11.81”
Depth of Field 20mm
0.79”		 60mm
2.36”
Minimum Speed 0.1 m/min
0.33 ft/min		 0.25 m/min
0.82 /ft/min
Maximum Speed 2000 m/min
6562 ft/min		 5000 m/min
16404 ft/min

Accuracy

Factory Calibrated to better than 0.05% within the central 20% of the Depth of Field.
Repeatability of 0.02%

Measurement

Maximum Acceleration Rate of 1000m/s2 (3280ft/s2)
Measurement Rate Up to 50,000/sec (20us)

Units

Speed Measurement selectable m/min, ft/min, yd/min
Length Measurement selectable m, ft, inch, yd

Material Present

For part length measurement

Connectivity

4 Pulse Outputs

Pulse Outputs x 3

RS422 Differential Pair Pulse Outputs Configurable as Quadrature or Index
Default Output 5vdc or User Input to 24vdc Max
2MHz Max Pulse Output Rate

3 Logic Inputs

Logic Input x 2

Non Isolated, Normally Open (High State) Pulldown Logic Inputs
Maximum Voltage: +/-30V Minimum Current 3mA
Reverse Direction, Length Hold, Display Hold, Speed Hold, Total Length
Reset, End of Reel / Batch Length Reset

2 Logic Outputs

Relay Outputs x 3

Maximum Voltage 25Vdc Current 0.1A
Gauge Ok, Object Detected, Gauge Measuring, Good Readings Low,
Gauge Temperature High, Preset Length 1, Preset Length 2

1 Serial I/O

CANbus x 1

RS232 Modbus Communications
USB using RS232 - USB Converter Cable
ZM4000 Printer Communications

1 CANBUS

CANbus x 1

Connects to Proton Products CDi4 Display


1 WiFi

i-BUS x 1

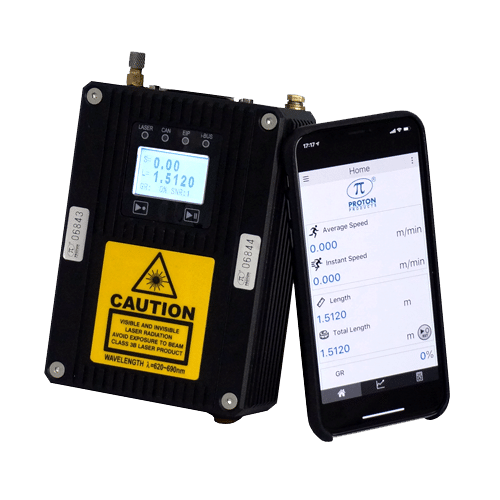

Connect to a PC or Mobile Device and use the Proton Products Gauge
App available for iOS and Android. Ideal for gauge configuration and
diagnostics.

1 i-BUS

i-BUS x 1

Ethernet TCP/IP Modbus is the Default Communication. Connect to a PLC using optional ProfiBus, ProfiNet, EtherNet I/P or DeviceNet.

Image Image Image Image

Laser Doppler

Class 3B Visible Laser.
Wavelength 650 - 670 nm, typically 658 nm with a beam diameter of 3mm (0.12”)
Total emitted power 40mW. Power Density at Stand Off Distance 50mW/cm2

Laser Doppler

Electrical and Operating Requirements

Power Supply
15 - 28 Vdc

Power Consumption
15 Watts

Operating Temerature
5c - 40c (41-104F)*

*See Accessories for High Temperature protection options

Environmental Protection
IP 67

Size and Weight


Height
142mm (5.6”)

Width
104mm (4.1”)

Thickness
53mm (2.1”)

Weight
3kg (6.6lbs)

Accessories

SL/SLR mini Accessories

Displays

AiG2-SL/SLR

Display module



  • Proton part number: 00041MC045



    • Connects via the CAN-bus port.
    • Displays measured speed and length.
    • Provides menu-based setting of all parameters.
    • Bright VFD dot matrix display.





CAN-bus cable

For connecting the gauge via a PSU-BOB mini to an CDi interface display unit



  • Proton part number: 00041MC045



  • * Available in 1, 5, 10, 20, 40, 60 and 100m lengths.



Name Length / m Proton part number
CAN 9DD_001 1 00041CB001
CAN 9DD_005 5 00041CB005
CAN 9DD_010 10 00041CB010
CAN 9DD_020 20 00041CB020
CAN 9DD_040 40 00041CB040
CAN 9DD_060 60 00041CB060
CAN 9DD_100 100 00041CB100



USB-RS232 Cable



  • Proton part number: GP00000624



    • For connecting the RS232 port of the PSU-BOB mini to the 7″Touch Screen PC.
    • Length: 1.8m.





AiG2 Panel Mount Kit



  • Proton part number: 00041MC049



    • Bracket for mounting the AiG2 to an end-user panel.





PCIS_SL/SLR mini

PC Interface Software



  • Proton part number: 00050SW001



    • PC-based software package.
    • User-friendly graphical user interface.
    • Displays all measurements.
    • Provides menu-based setting of all parameters.
    • Provides trending, data logging, presets and alarms.
    • Gauge to PC connection via RS-232.





7″ Touch Screen PC

Industrial PC



  • Proton part number: 00043MC029



    • For running the above PCiS_SL/SLR mini software
    • Displays all measurements.
    • Provides menu-based setting of all parameters.
    • Provides trending, data logging, presets and alarms.
    • Gauge to PC connection via RS-232 or optional RS-232-to-USB interface cable (RSCon).






Power

DB25 Cable

For connecting the gauge "INTERFACE" port to a PSU-BOB mini.



  • * Available in 1, 3, 5, 10, 20 and 30 m lengths.



Name Length / m Proton part number
BOB 25DD_001M 1 00041CT001
BOB 25DD_003M 3 00041CT003
BOB 25DD_005M 5 00041CT005
BOB 25DD_010M 10 00041CT010
BOB 25DD_020M 20 00041CT020
BOB 25DD_030M 30 00041CT030



Terminal Expander

Gauge-mounted break-out box



  • Proton part number: 00050MC036



    • Connects via the DB25 “INTERFACE” connector.
    • Provides DB9 connector access to the RS-232, CAN-bus, Ethernet or optional industrial bus communications ports.
    • Provides screw terminal access to all electrical input and output pins.
    • End user cables are sealed with cable glands.





PSU-BOB mini

Power supply, break-out box and laser safety key switch



  • Proton part number: 00050MC039



    • Connects via the DB25 "INTERFACE" connector.
    • Supplies 24VDC electrical power to the gauge.
    • Provides DB9 connector access to the RS-232, CAN-bus and optional industrial bus communications ports.
    • Provides RJ45 connector access to the Ethernet port.
    • Provides screw terminal access to all electrical input and output pins.
    • End user cables are sealed with three cable glands.
    • Provides a laser enable key switch for compliance with laser safety requirements.
    • Input voltage range: 90 – 260 VAC @ 45 – 65 Hz.





Communications

Industrial Bus Module

For connecting the gauge to industrial communications buses, such as used with PLCs.



  • * May be field retrofitted.



Protocol Proton part number
DeviceNET 00043MC006
PROFIBUS 00043MC022
PROFINET 00043MC031
EtherNet/IP 00043MC005





Stands and Guards

Base Plate



  • Proton part number: 00050MC042



  • * For securing a SL/SLR mini gauge to a mounting surface.





3D Adjuster Plate



  • Proton part number: 00050MC044



    • For use with the above Base Plate (00050MC042) for precision alignment of the SL/SLR mini gauge to the measured object.
    • Provides ±3° of roll and yaw adjustment.





Laser Protection Tube for SL/SLR mini 3060



  • Proton part number: 00050MC037



    • Enclosure of the laser beam to within 10mm of the object for laser safety requirements.





Vibration Reducing Kit



  • Proton part number: 00050MC043



    • For use with the above Base Plate (00050MC042) in high-vibration environments.





Laser Protection Tube for SL/SLR mini 1220



  • Proton part number: 00050MC033



    • Enclosure of the laser beam to within 10mm of the object for laser safety requirements.





Protection

Air Wipe



  • Proton part number: 00050MC034



    • High-efficiency, air-wiped protection window for dusty/steamy environments with a quick-change window release mechanism.
    • Provides an 8 mm push fit tube fitting to connection to a clean air source.







Cooling

Cooling plate



  • Proton part number: 00050MC031



    • Air or water cooled plate for installation between the gauge and mounting surface.
    • For use in ambient temperatures up to 60°C.







Calibration accessories

SL Calibration Case

Portable on-site calibration system



  • Proton part number: 00020TL750



    • Motorised aluminium calibration wheel mounted in a rugged aluminium frame carry case.
    • Displays speed and length.
